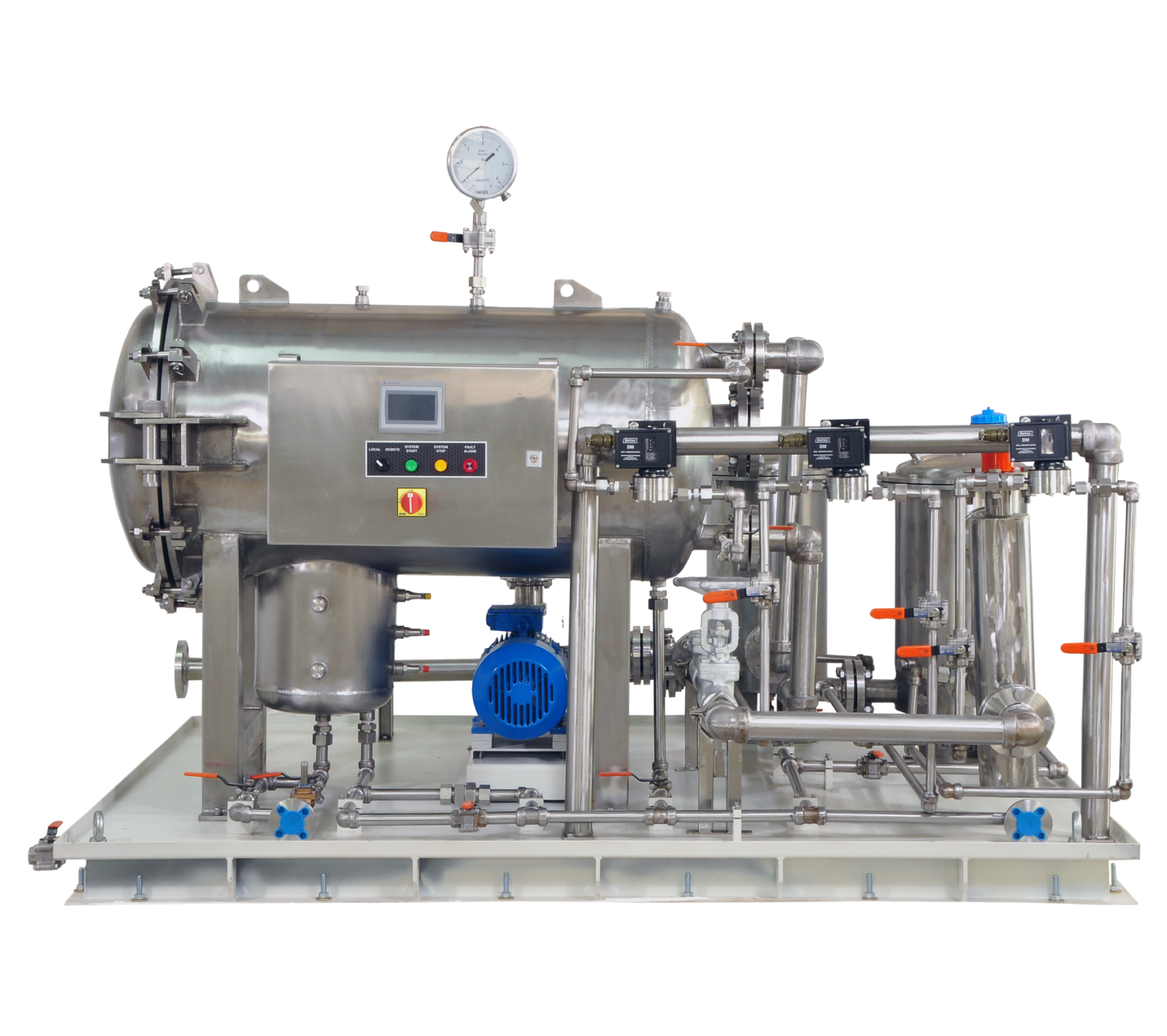

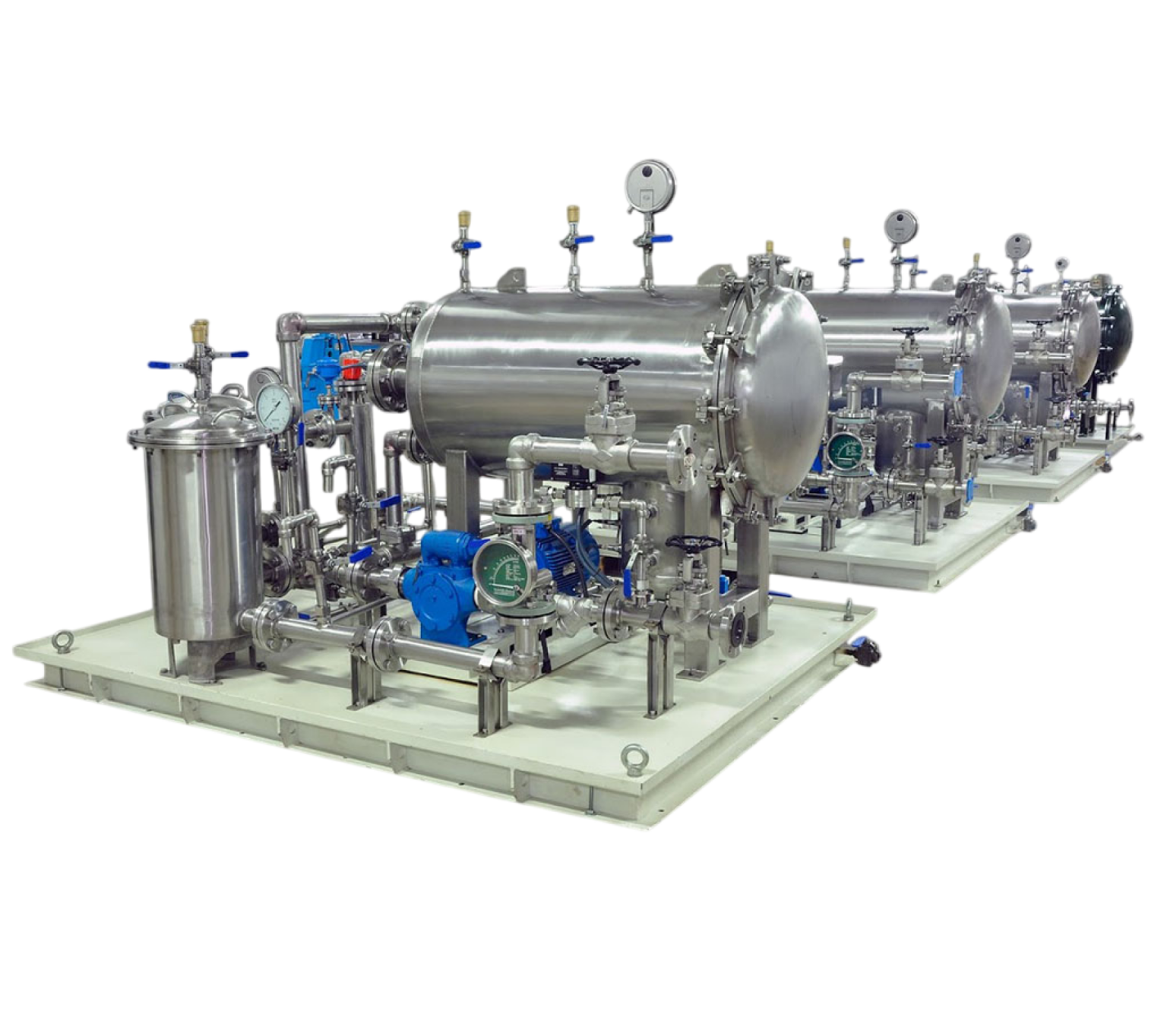

TOC Turbine Lubrication Oil Coalescing System
Our PTss-TOC system, leveraging technology developed by Parker-Velcon, USA, is designed to provide exceptional purification of turbine lube oil by removing free water and solid contaminants. This advanced system combines state-of-the-art coalescing technology with high-quality microglass filter media to restore your turbine lube oil to a pristine, clean, and dry state.
Why Choose the PTss-TOC System?
- Exceptional Purity: Achieve remarkably clean and dry turbine lube oil, extending the life and efficiency of your turbines.
Reliable Performance: Replace outdated systems with a high-efficiency solution, reducing downtime and maintenance costs.
Advanced Filtration: Benefit from cutting-edge coalescing technology and superior filter media.
Automated Operation: Enjoy the convenience and safety of fully automated, PLC-controlled operation.
Comprehensive Solution: Receive a fully equipped and tested system, ready for immediate use and integration.
Self-Priming Pump:
Equipped with a positive displacement pump and motor designed for specified flow rates, ensuring consistent and reliable operation.
Multi-Stage Filtration:
Stage 1: Vertical pre-filter vessel removes larger contaminants, preparing the oil for finer filtration.
Stage 2: Horizontal coalescer/separator vessel effectively removes free water and fine particulates.
Stage 3: Polishing filter vessel ensures the final product meets stringent purity standards.
Factory Tested:
- The entire system is tested and verified to meet specified process oil requirements and influent/outfluent characteristics, guaranteeing top-notch performance from day one.
- Removes free water, reduces dissolved water to 150 ppm, and achieves ISO cleanliness of 14/11 or better for optimal turbine lube oil conditions.
- Ideal for upgrading or replacing low-efficiency reservoir filtration systems to enhance performance and reliability.
- Uses advanced coalescing technology and premium micro-glass filter media for superior filtration.
- Fully equipped and factory-tested system with all necessary instruments and gauges for seamless integration.
- Fully automated PLC control for safe, unattended operation, reducing the need for constant monitoring.
| Particulars | TOC10 | TOC20 | TOC30 | TOC40 | TOC50 |
|---|---|---|---|---|---|
| Flow Rate | 33 LPM | 66 LPM | 100 LPM | 133 LPM | 166 LPM |
| Motor in HP | 0.5 HP | 1 HP | 3 HP | 5 HP | 5 HP |
| Connection Size | 3/4” | 1 1/2” | 1 1/2” | 2” | 2” |
| Weight | 650 Kg | 700 Kg | 800 Kg | 850 Kg | 900 Kg |
| Shipping Weight | 1000 Kg | 1050 Kg | 1150 Kg | 1200 Kg | 1250 Kg |
3 Phase,415 Volts,50 Hz 3 – 5 HP
Compatible with external interfaces provided include Ethernet (RJ45), MODBUS & IEC 61850 for SCADA communication as well IIOT & Web Browser for Data visualization as optional.
