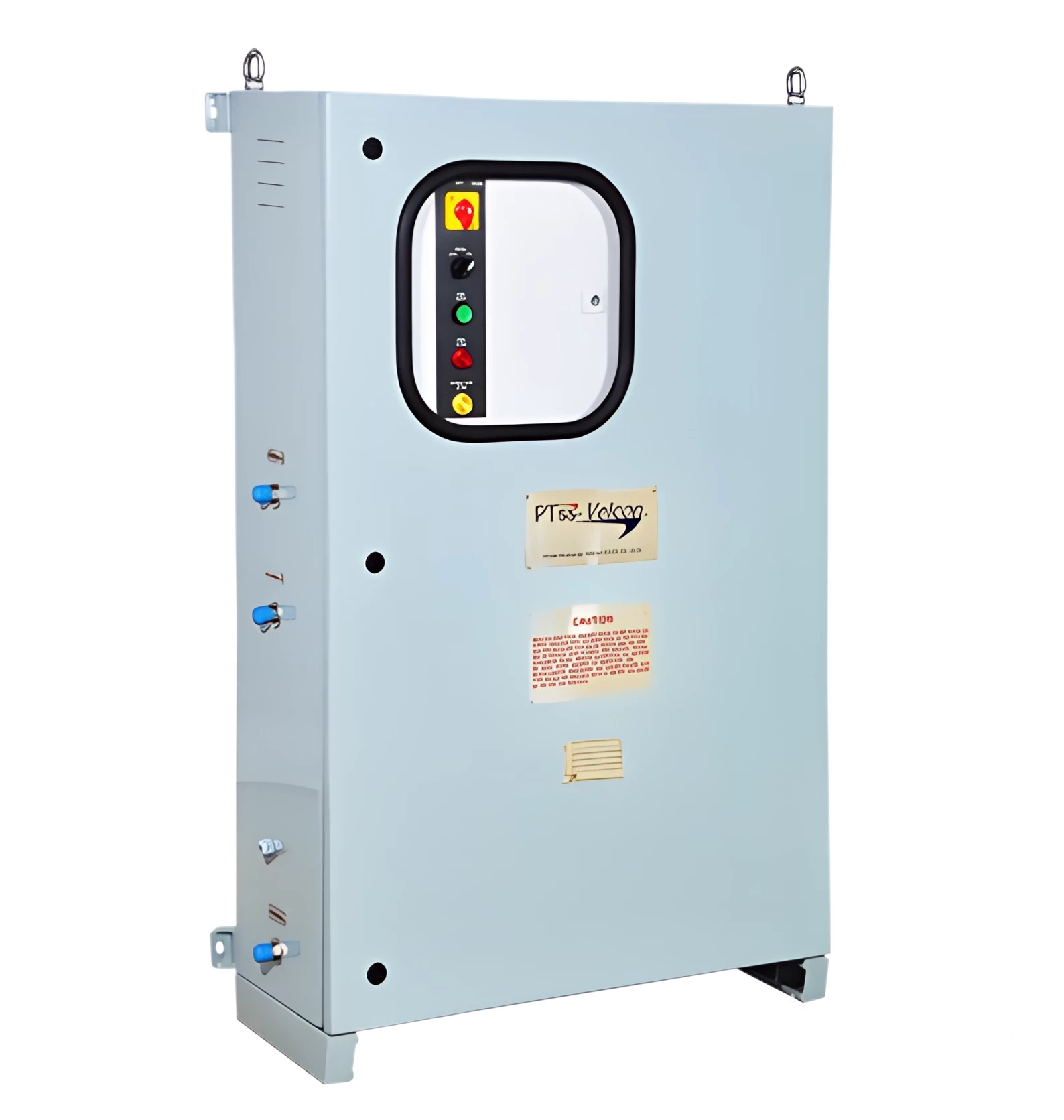

TFS - Online Tap Changer Filter System
Our PTss-TFS system is designed specifically to operate on an energized transformer’s On-Load Tap Changer (OLTC), effectively removing moisture and carbon particles. Here’s a comprehensive look at what makes this system an indispensable solution for maintaining transformer health and efficiency.
Why Choose the PTss-TFS Online Tap Changer Filter System?
- By maintaining the oil’s purity, PTss-TFS helps ensure that your transformer operates efficiently and reliably.
- Removing moisture and carbon particles from the oil reduces wear and tear on the transformer, extending its lifespan and reducing maintenance costs.
- The automated, unattended operation of the PTss-TFS system minimizes the need for manual intervention, saving time and reducing labor costs.
- The system’s design avoids the use of additional chemicals or processes that could harm the environment, making it a sustainable choice for your business.
- With PTss-TFS, you can trust that your transformer is protected and performing optimally, even during periods of high demand.
Key Features
Specifications
Dimension and Weight of equipment
Key Features
- Superior Moisture Removal: PTss-TFS employs specialized absorptive cartridges to remove moisture from the oil, reducing it to less than 10 PPM. This ensures the optimal performance and longevity of your transformer.
- Carbon Particle Elimination: The system filters out carbon particles as small as 0.3 microns, maintaining the purity of the oil and preventing potential operational issues.
- No Heating or Vacuum Required: Unlike other filtration systems, PTss-TFS does not use heating or vacuum processes. This preserves the original virgin characteristics of the oil, ensuring its quality and effectiveness.
- Retention of Essential Components: Our filtration process does not remove oxidation inhibitors or fault gases, preserving the critical properties and functionality of the oil.
- Automated Operation: PTss-TFS can be set to operate on a pre-programmed schedule or based on preset tap changes. The system automatically triggers itself for operation, making it safe for unattended use.
Specifications
Capacity
PTss-TFS comes in 2 optional flow capacities from 260 LPH to 700 LPH and can be sized based on the requirements of the OLTC oil capacity.
- TFS1GC1X – Tap Changer filtration System with Dissolved water as well as Carbon Removal(260 LPH).
- TFS3GA1X – Tap Changer filtration System with Dissolved water as well as Carbon Removal (700 LPH).
Power Requirements
3Phase, 415 Volts, 50 Hertz 0.5 Hp is standard and other options are available on specific request.
Dimension and Weight of equipment
Weight:
200Kg Equipment (nett)
